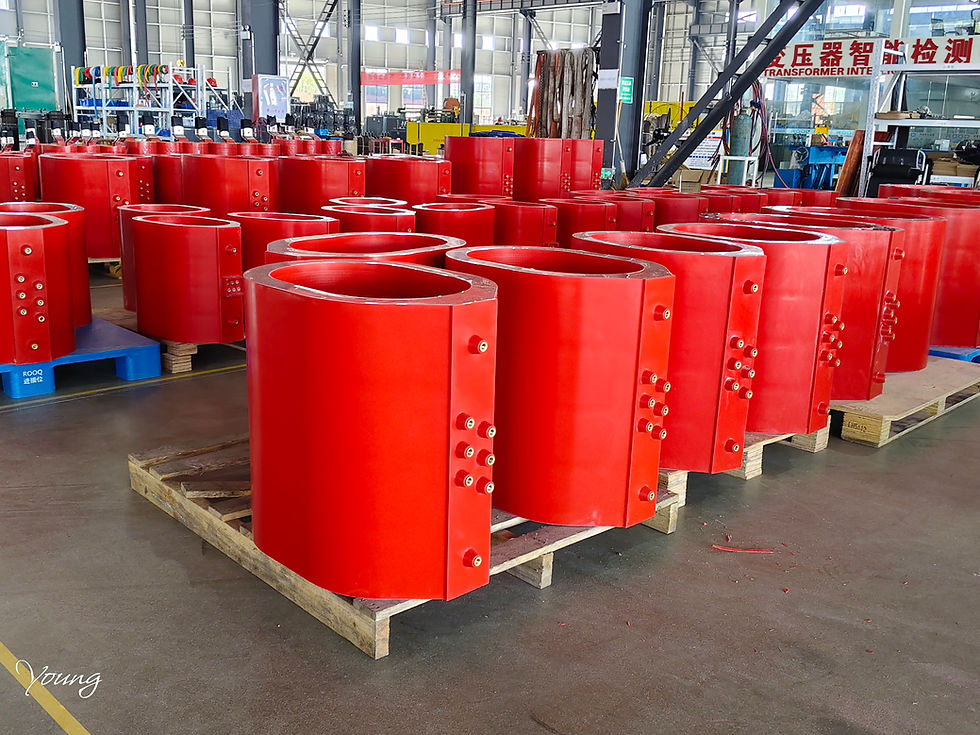

Dry type transformer
Primary voltage range
Transformer capacity
6kV 10kV 11kV 15kV 20kV 22kV 33kV 35kV
Common capacities: 63kVA, 100kVA, 160kVA, 200kVA, 315kVA, 400kVA, 500kVA, 630kVA, 800kVA, 1000kVA, 1250kVA, 1600kVA, 2000kVA, 2.5MVA, 3.15MVA 4MVA, 5MVA, 6.3MVA, 10MVA
Vector group
Frequency
Dyn11, Yyn0,Dyn5
50Hz, 60Hz
Core Advantages of Dry type Transformers
Outstanding Safety & Low Maintenance Requirements: Adopting air as the cooling medium and flame-retardant insulation materials, they feature fire resistance, non-flammability and no risk of oil leakage. Free from regular oil testing, oil replacement and sealing maintenance, greatly reducing long-term operation costs.
Compact & Clean Indoor Operation: No oil storage structure is required. Clean and pollution-free operation is realized, making them perfectly suited for indoor power stations, commercial buildings and densely populated areas. Low noise design improves the working environment significantly.
High Operational Flexibility & Wide Application Scenarios: Able to withstand frequent overload and short-circuit impacts. Equipped with built-in temperature monitoring systems, they support automatic temperature control and alarm. Suitable for urban buildings, medical facilities, industrial workshops and other high-standard power supply occasions.
